نموذج Item No. |

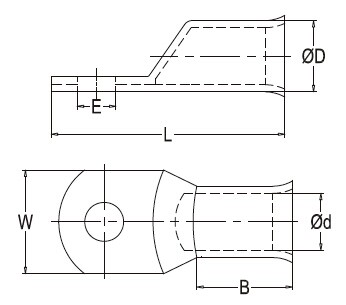

E | Dφ | dφ | W | B | L |
| AWG8-10(5.1) | 5.1 | 7.1 | 4.8 | 11.8 | 13 | 33.3 |
| AWG8-1/4(6.8) | 6.8 | 7.1 | 4.8 | 11.8 | 13 | 33.3 |
| AWG8-5/16(8.3) | 8.3 | 7.1 | 4.8 | 11.8 | 13 | 33.3 |
| AWG8-3/8(10.4) | 10.4 | 7.1 | 4.8 | 14.5 | 13 | 33.3 |
| AWG8-1/2(13.1) | 13.1 | 7.1 | 4.8 | 17 | 13 | 33.3 |
| AWG6-10(5.1) | 5.1 | 8.1 | 5.9 | 11.8 | 15 | 37.3 |
| AWG6-1/4(6.8) | 6.8 | 8.1 | 5.9 | 13.7 | 15 | 37.3 |
| AWG6-5/16(8.3) | 8.3 | 8.1 | 5.9 | 13.7 | 15 | 37.3 |
| AWG6-3/8(10.4) | 10.4 | 8.1 | 5.9 | 13.7 | 15 | 37.3 |
| AWG6-1/2(13.1) | 13.1 | 8.1 | 5.9 | 17 | 14 | 37.3 |
| AWG4-1/4(6.8) | 6.8 | 9.5 | 7.3 | 13.8 | 15.5 | 38.9 |
| AWG4-5/16(8.3) | 8.3 | 9.5 | 7.3 | 13.8 | 15.5 | 38.9 |
| AWG4-3/8(10.4) | 10.4 | 9.5 | 7.3 | 14.5 | 15.5 | 38.9 |
| AWG4-1/2(13.1) | 13.1 | 9.5 | 7.3 | 17 | 15 | 38.9 |
| AWG2-1/4(6.8) | 6.8 | 11.1 | 8.5 | 16.5 | 16 | 41.1 |
| AWG2-5/16(8.3) | 8.3 | 11.1 | 8.5 | 16.5 | 16 | 41.1 |
| AWG2-3/8(10.4) | 10.4 | 11.1 | 8.5 | 16.5 | 16 | 41.1 |
| AWG2-1/2(13.1) | 13.1 | 11.1 | 8.5 | 17 | 15.3 | 41.1 |
| AWG1-1/4(6.8) | 6.8 | 11.7 | 9.1 | 16.4 | 16 | 43.6 |
| AWG1-5/16(8.3) | 8.3 | 11.7 | 9.1 | 16.4 | 16 | 43.6 |
| AWG1-3/8(10.4) | 10.4 | 11.7 | 9.1 | 17.1 | 16 | 43.6 |
| AWG1-1/2(13.1) | 13.1 | 11.7 | 9.1 | 19.1 | 16 | 43.6 |
| AWG1/0-1/4(6.8) | 6.8 | 13 | 10.4 | 18.4 | 19 | 46.8 |
| AWG1/0-5/16(8.3) | 8.3 | 13 | 10.4 | 18.4 | 19 | 46.8 |
| AWG1/0-3/8(10.4) | 10.4 | 13 | 10.4 | 18.4 | 19 | 46.8 |
| AWG1/0-1/2(13.1) | 13.1 | 13 | 10.4 | 21 | 19 | 46.8 |
| AWG2/0-1/4(6.8) | 6.8 | 14.2 | 11.7 | 21 | 22 | 52.4 |
| AWG2/0-5/16(8.3) | 8.3 | 14.2 | 11.7 | 21 | 22 | 52.4 |
| AWG2/0-3/8(10.4) | 10.4 | 14.2 | 11.7 | 21 | 22 | 52.4 |
| AWG2/0-1/2(13.1) | 13.1 | 14.2 | 11.7 | 21 | 21 | 52.4 |
| AWG3/0-5/16(8.3) | 8.3 | 15.7 | 13 | 23.1 | 22.5 | 55.9 |
| AWG3/0-3/8(10.4) | 10.4 | 15.7 | 13 | 23.1 | 22.5 | 55.9 |
| AWG3/0-1/2(13.1) | 13.1 | 15.7 | 13 | 23.1 | 22.5 | 55.9 |
| AWG4/0-5/16(8.3) | 8.3 | 17.2 | 14.2 | 25.8 | 24 | 60.5 |
| AWG4/0-3/8(10.4) | 10.4 | 17.2 | 14.2 | 25.8 | 24 | 60.5 |
| AWG4/0-1/2(13.1) | 13.1 | 17.2 | 14.2 | 25.8 | 24 | 60.5 |
